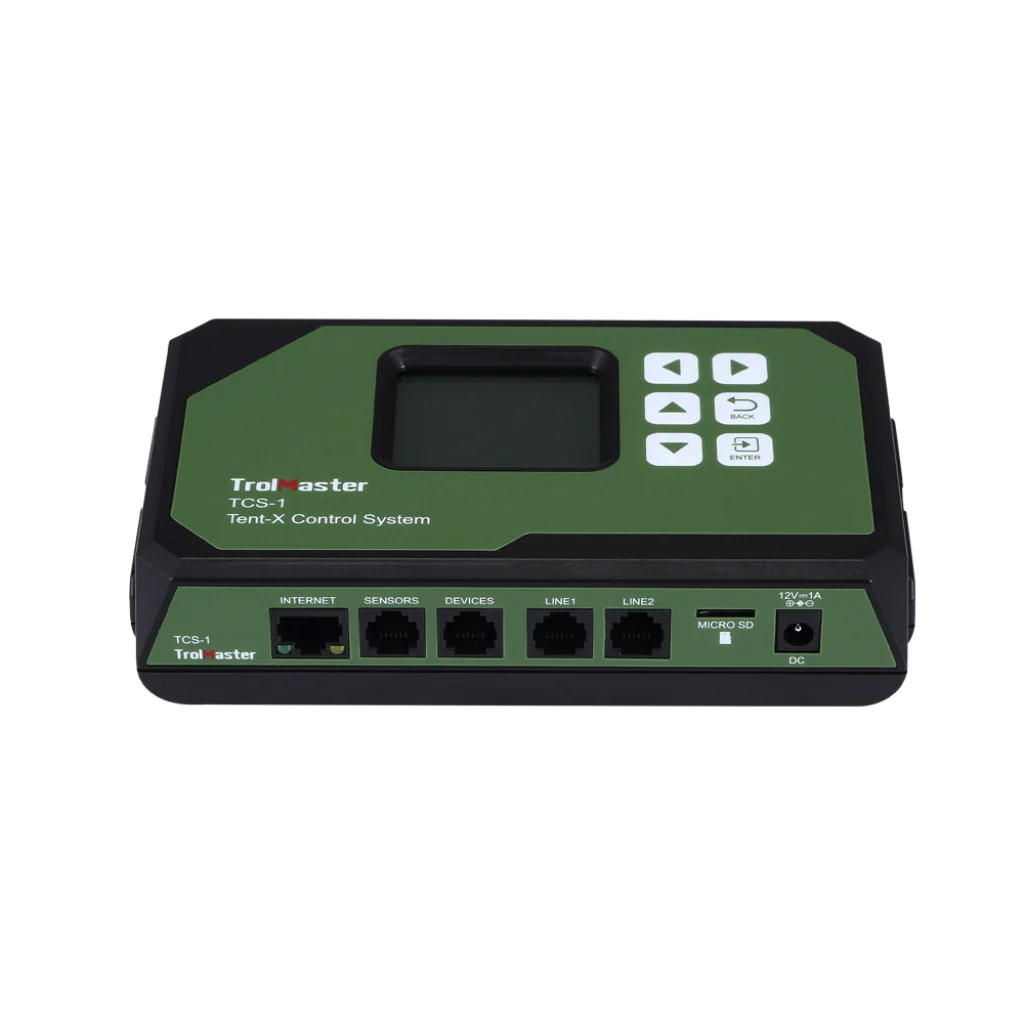

TrolMaster Tent-X System Main Controller (TCS-1)
The TrolMaster Tent-X (TCS-1) is a professional-grade, modular environmental and irrigation control system designed specifically for single-zone grow tents. Its compact hydroponic capabilities allow users to effectively manage their tent's environmental parameters and irrigation schedules through a single, integrated controller.
Key Features:
-
Integrated 3-in-1 Sensor: Comes with the MBS-TH sensor that monitors temperature, humidity, and light levels, providing comprehensive environmental data.
-
Expandable Sensor Network: Supports daisy-chaining additional sensors, including CO₂ (MBS-S8), full-spectrum quantum (MBS-PAR), smoke detectors, and water detectors, enhancing monitoring capabilities.
-
Modular Design: Allows connection of up to four DS-type plug-in control modules, facilitating customized control over environmental and irrigation devices.
-
Comprehensive Device Integration: Serves as the central hub, uniting all climate control and irrigation devices to create an optimal growth environment for plants.
Specifications:
| Specification | Details |
|---|---|
| Input Voltage | 100-240 VAC, 50/60 Hz |
| Certifications | ETL/FCC |
| Max Number of Lighting Fixtures | 256 × 2 |
| Max Distance of Device Connected | 1000 meters |
| 3-in-1 (Temp/Humid/Light) Sensor | Max 1 per set |
| CO₂ Sensor | Max 1 per set |
| Full Spectrum Quantum Sensor | Max 1 per set |
| Smoke Detector | Max 1 per set |
| AMP-3 Sensor Board (pH/EC/Temp) | Max 1 per set |
| Water Content Sensor | Max 1 per set |
| Water Detector | Max 2 per set |
| Temp Device Stations | Max 2 per set |
| Humid Device Stations | Max 2 per set |
| CO₂ Device Stations | Max 2 per set |
| Program Device Stations | Max 4 per set |
| EC Fan Control Adapter | Max 2 per set |
Package Contents:
-
1 × Tent-X Controller
-
1 × Temp/Humid/Light 3-in-1 Sensor
-
1 × RJ12 Cable Set for Light Connection
-
1 × RJ12 T-splitter
The TrolMaster TCS-1 Tent-X System Main Controller is the central component that unites all your climate control and irrigation devices, enabling them to work together to create the optimal growth environment for your plants
Original: $360.49
-65%$360.49
$126.17
Description
The TrolMaster Tent-X (TCS-1) is a professional-grade, modular environmental and irrigation control system designed specifically for single-zone grow tents. Its compact hydroponic capabilities allow users to effectively manage their tent's environmental parameters and irrigation schedules through a single, integrated controller.
Key Features:
-
Integrated 3-in-1 Sensor: Comes with the MBS-TH sensor that monitors temperature, humidity, and light levels, providing comprehensive environmental data.
-
Expandable Sensor Network: Supports daisy-chaining additional sensors, including CO₂ (MBS-S8), full-spectrum quantum (MBS-PAR), smoke detectors, and water detectors, enhancing monitoring capabilities.
-
Modular Design: Allows connection of up to four DS-type plug-in control modules, facilitating customized control over environmental and irrigation devices.
-
Comprehensive Device Integration: Serves as the central hub, uniting all climate control and irrigation devices to create an optimal growth environment for plants.
Specifications:
| Specification | Details |
|---|---|
| Input Voltage | 100-240 VAC, 50/60 Hz |
| Certifications | ETL/FCC |
| Max Number of Lighting Fixtures | 256 × 2 |
| Max Distance of Device Connected | 1000 meters |
| 3-in-1 (Temp/Humid/Light) Sensor | Max 1 per set |
| CO₂ Sensor | Max 1 per set |
| Full Spectrum Quantum Sensor | Max 1 per set |
| Smoke Detector | Max 1 per set |
| AMP-3 Sensor Board (pH/EC/Temp) | Max 1 per set |
| Water Content Sensor | Max 1 per set |
| Water Detector | Max 2 per set |
| Temp Device Stations | Max 2 per set |
| Humid Device Stations | Max 2 per set |
| CO₂ Device Stations | Max 2 per set |
| Program Device Stations | Max 4 per set |
| EC Fan Control Adapter | Max 2 per set |
Package Contents:
-
1 × Tent-X Controller
-
1 × Temp/Humid/Light 3-in-1 Sensor
-
1 × RJ12 Cable Set for Light Connection
-
1 × RJ12 T-splitter
The TrolMaster TCS-1 Tent-X System Main Controller is the central component that unites all your climate control and irrigation devices, enabling them to work together to create the optimal growth environment for your plants
