TrolMaster Thermostat Station 2 (TS-2)

The TrolMaster TS-2 Thermostat Station is designed to replace traditional thermostats in standard HVAC units, offering enhanced control when integrated with the Hydro-X Environmental Control System. It is compatible with various HVAC systems, including heat pumps and multi-stage units.

Key Features

• Versatile HVAC Compatibility: Controls multiple HVAC systems, including heat pumps and multi-stage units.
• Day and Night Settings: Allows separate day and night temperature settings for up to four TS modules, enabling control of multiple HVAC systems with a single Hydro-X controller.
• Adjustable Activation Delay: Features an adjustable delay time to prevent simultaneous activation of multiple HVAC systems, reducing high start-up currents.

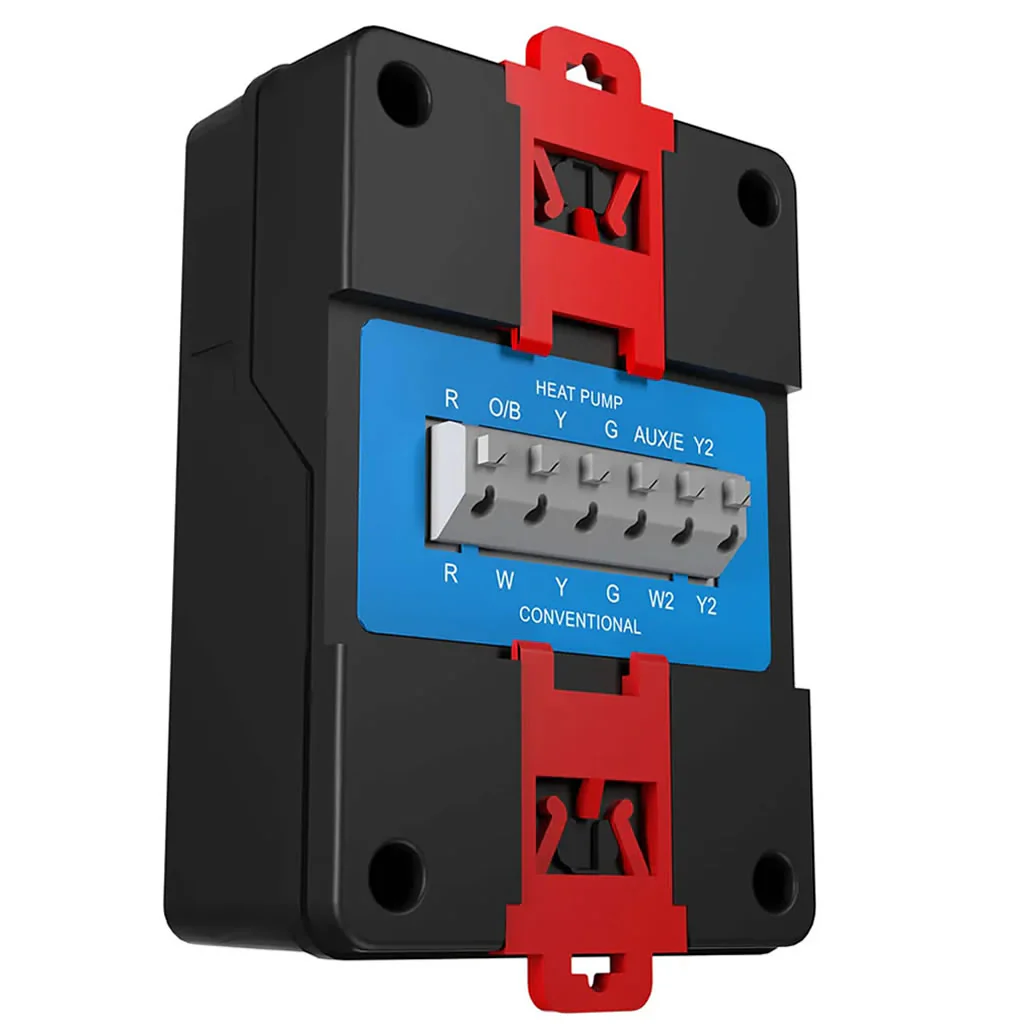

• Easy Integration: Utilizes standard low-voltage thermostat wiring for straightforward installation.

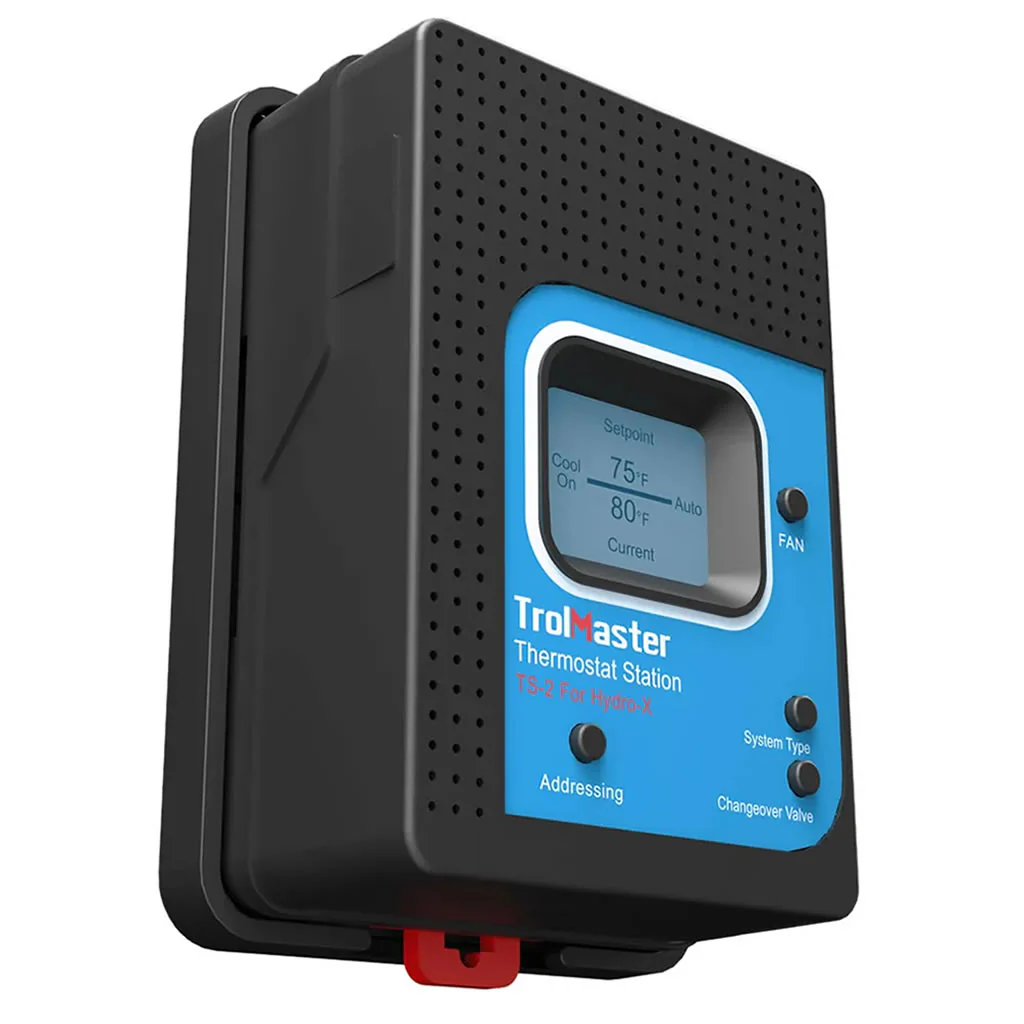

• LCD Display: Provides clear temperature readings and system status.
• Firmware Upgradable: Equipped with a Micro-SD slot for easy firmware updates.

Specifications

Specification	Details
Output Voltage	24V
Maximum Current	1A
Working Environment	Temperature: 32-122°F (0-50°C), Humidity ≤90%
Package Dimensions	160mm (L) x 86mm (W) x 86mm (H)

Package Contents

• 1 x Thermostat Station (TS-2)
• 1 x 16ft RJ12 Cable
• 1 x 4ft RJ12 Cable
• 1 x RJ12 T-Splitter

The TrolMaster TS-2 Thermostat Station enhances your HVAC control capabilities by replacing traditional thermostats, providing precise and efficient temperature management within your Hydro-X system.
